pengenalan produk
The system for entering the prison or for the mobile operator communication system has special requirements of that user terminal in the communication coverage area, according to the user's classification, communication permission or communication blocking. For special target users, according to communication system difference, it is also possible to conduct further communication checks.
Sistem kawalan komunikasi termasuk sistem komunikasi berikut:CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, 3G WCDMA, 4G LTE dan sebagainya isyarat komunikasi mudah alih.
Keseluruhan sistem boleh disesuaikan mengikut keperluan pelanggan tertentu, dan secara fleksibel boleh memenuhi gabungan keperluan sistem komunikasi khas negara atau wilayah yang berbeza.

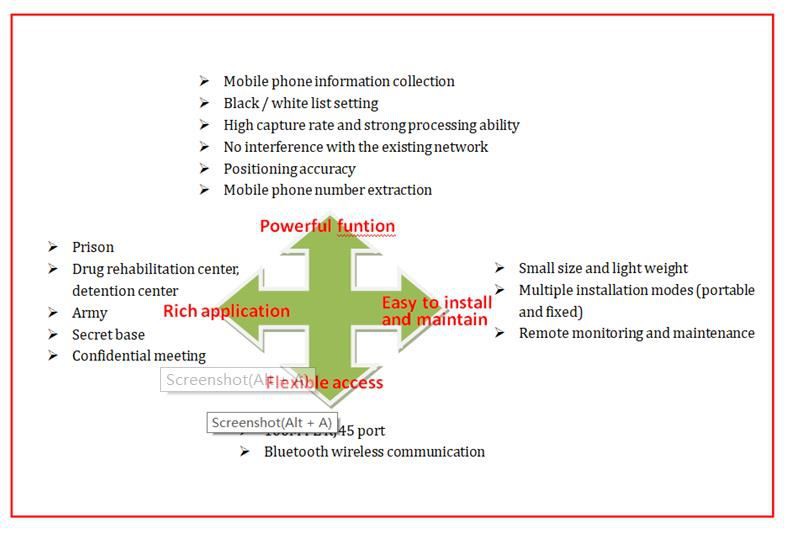

Fungsi asas sistem termasuk:
● According to different communication system of in all coverage areas to terminal uers IMSI capture
● To captured IMSI filtering whitelist and blacklist
● Whitelist users release back to the macro network for normal communication.
● Not Whitelist user communication blocking and shielding
● Conduct communication monitoring for blacklist users who meet certain conditions, Or with other device for positioning
● 20W coverage distance directional antenna jamming diameter 1000-2000M, omnidirectional antenna jamming radius 500-800M.
● The detailed functions of the various communication systems included: Macro network scanning, Automatic and manual network settings, IMSI / ESN capture, Black and white list setting and filtering, Access policy configuration, In the network UE status monitoring, Report terminal signal strength.
● For TDD-LTE and FDD-LTE, the captured UEcan be redirected to the specified 2G and 3G systems.
Spesifikasi Produk
Jalur frekuensi kerja | CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, 3G WCDMA, 4G LTE dan sebagainya | |
Kapasiti | Gelombang pembawa maksimum bingkai kotak unit: 4 | |
Prestasi | Kuasa output RF maksimum: 40dBm/Jalur, Output aliran tunggal | |
Power adjustment range 0-30dB, adjustment step size 1dB, adjustment error±0.5dB | ||
Ketepatan penyegerakan: 0.1ppm | ||
Jarak jamming | 20W diameter jamming antena arah 1000-2000M, jejari antena Omnidirectional 500-800M | |
Prestasi WiFi | Menyokong wap tunggal 2.4G | |
Kuasa 20dBm | ||
Sokongan 802.11b/g/n | ||
Pelabuhan | Sokongan RJ451(WAN) untuk akses tempatan | |
N-J2 | 2 RF port（ANT0,ANT1） | |
SMA-J | Port antena WiFi(standard), Sokongan untuk akses tempatan | |
SCAN Antena penyegerakan | ||
Port antena GPS | ||
Penyegerakan masa | Sokongan setiap jalur masa GPS penyegerakan | |
Menyokong penyegerakan masa pelayan NTP, setiap jalur | ||
Tangkap prestasi nombor | Kadar tangkapan terminal statik melahu Lebih daripada atau sama dengan 95 peratus ,Kadar nombor tangkapan terminal mudah alih Lebih besar daripada atau sama dengan 90 peratus | |
Gangguan komunikasi | Sambungan wayarles perisian, kesesakan hijau | |
Senarai putih | Sokong pengguna senarai putih untuk melepaskan komunikasi biasa ke rangkaian awam | |
Tetapan dasar pengguna | Sokongan push 4G/3G/2G pilihan | |
Masa permulaan sistem | Kurang daripada atau sama dengan 300s | |
Penggunaan maksimum | 4 box frame total consumption >1000W | |
Dimensi | ||
Berat badan | ||
bahan | aluminium | |
Tahap Perlindungan | IP32/IP65 pilihan | |
Warna | hitam | |
Kuasa | AC220 | |
Keperluan alam sekitar | Indoor environment,-30 degree -55 degree ,humidity＜85％ | |
Jika memerlukan maklumat lanjut, sila e-mel kepada kami.
